Where to buy inserts for machining, grooving and cutting a V groove
or multiple V-ribbed pulleys and sheaves ?
SCT CO., LTD. can provice you with a compelte solution. For years, we successfully provide V grooves cutting solutions to our worldwide automotive belt pulley and sheave makers. SCT pulley grooving inserts with tool-holders are especially used for casting iron pulley grooving, hardended steel pulley grooving, aluminum pulley grooving, and bronze alloyed pulley grooving are the main workpieces.
| Family Members of Pulley Grooving Insert |
| Insert Shape |
Shape Symbol |
Number of
Tooth / Teeth |
Standard
Nose Angle |
Notes |
Tool-Holder
Left / Rright |
Insert Picture |
Website Link |
 |

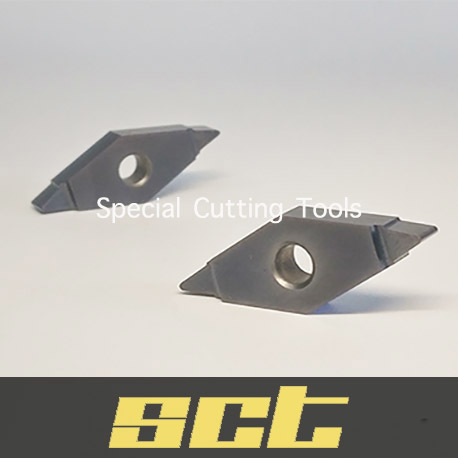

V12 |
1 tooth each
on 2 ends |
34° / 37° / 40° |
With
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |

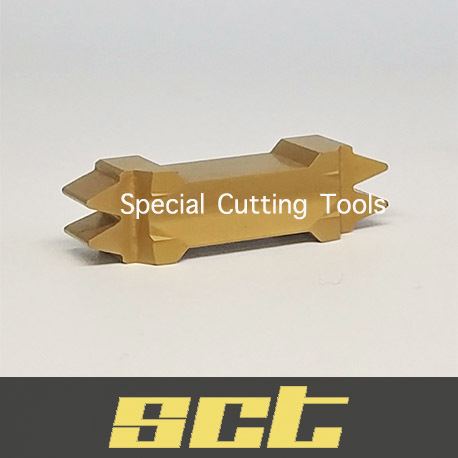

M12 |
1 tooth each
on 2 ends |
34° / 37° / 40° |
Without
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |
VT13 |
1 tooth each
on 3 ends |
34° / 37° / 40° |
With
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |

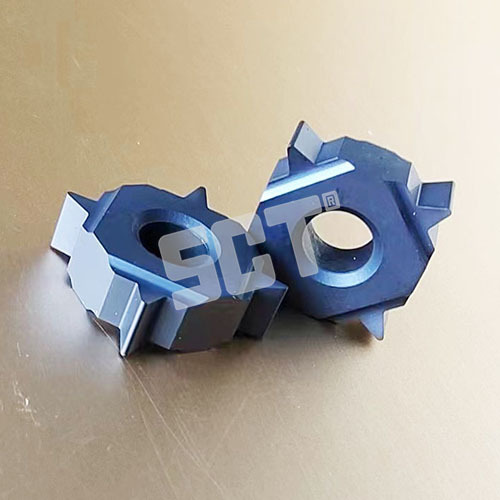

S14 |
1 tooth each
on 4 ends |
34° / 37° / 40° |
With
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |

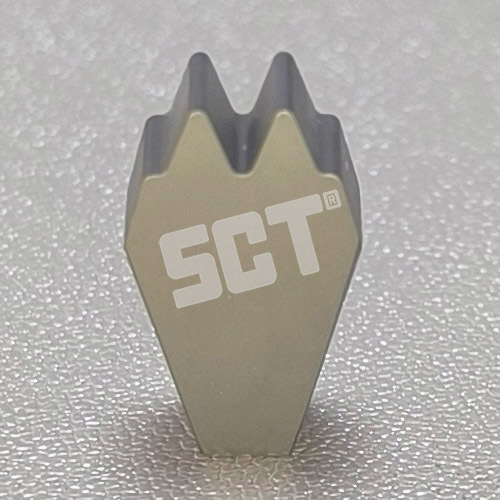

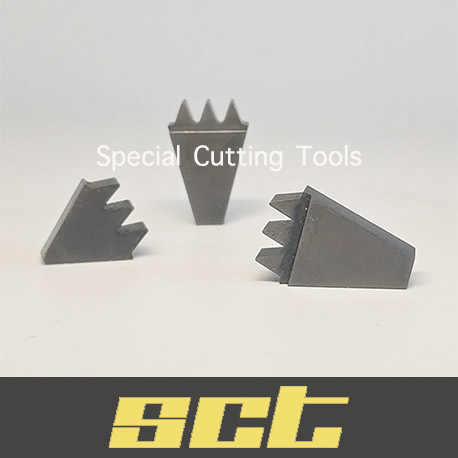

T21 |
2 teeth
on 1 end |
34° / 37° / 40° |
Without
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |

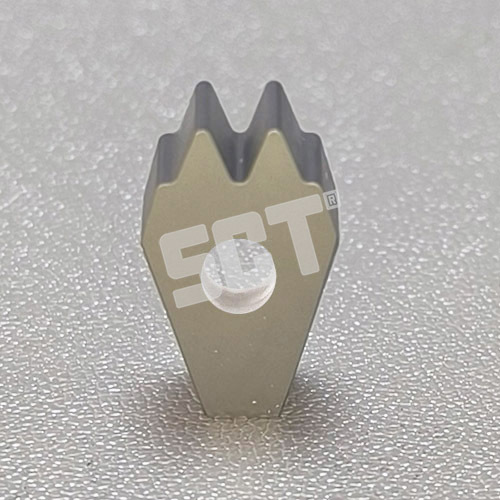

T21H |
2 teeth
on 1 end |
34° / 37° / 40° |
With
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |
L22 |
2 teeth each
on 2 ends |
34° / 37° / 40° |
With
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |
M22 |
2 teeth each
on 2 ends |
34° / 37° / 40° |
Without
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |

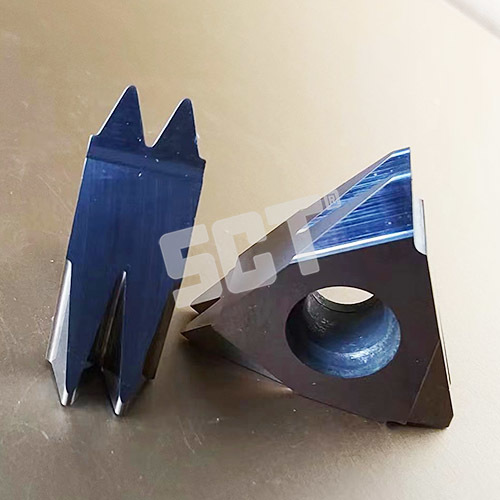

VT23 |
2 teeth each
on 3 ends |
34° / 37° / 40° |
With
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |

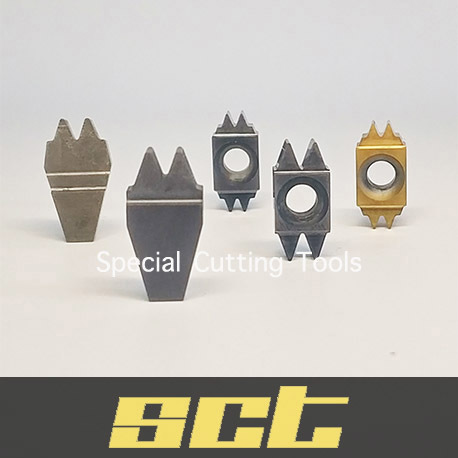

L32 |
3 teeth each
on 2 ends |
34° / 37° / 40° |
With
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |

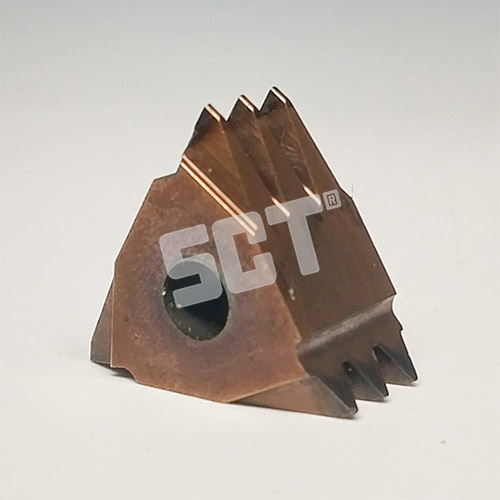

VT33 |
3 teeth each
on 3 ends |
34° / 37° / 40° |
With
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |
T31 |
3 teeth
on 1 end |
34° / 37° / 40° |
Without
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |
T31R |
3 teeth
on 1 end |
34° / 37° / 40° |
With
Raked Angle |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |
T41 |
4 teeth
on 1 end |
34° / 37° / 40° |
Without
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |
T41H |
4 teeth
on 1 end |
34° / 37° / 40° |
With
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |
T41R |
4 teeth
on 1 end |
34° / 37° / 40° |
With
Raked Angle |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |
T51 |
5 teeth
on 1 end |
34° / 37° / 40° |
Without
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |
T51H |
5 teeth
on 1 end |
34° / 37° / 40° |
With
Bolt Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |
T51R |
5 teeth
on 1 end |
34° / 37° / 40° |
With
Raked Angle |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |
T61 |
6 teeth
on 1 end |
34° / 37° / 40° |
Without
Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |
T61H |
6 teeth
on 1 end |
34° / 37° / 40° |
With
Hole |
Left hand
&
Right Hand |
 |
DETAILS
→ |
 |

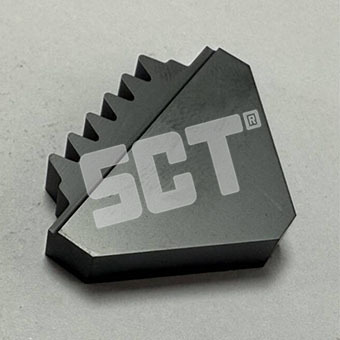

T61R |
6 teeth
on 1 end |
34° / 37° / 40° |
With
Raked Angle |
Left hand
&
Right Hand |
 |
DETAILS
→ |

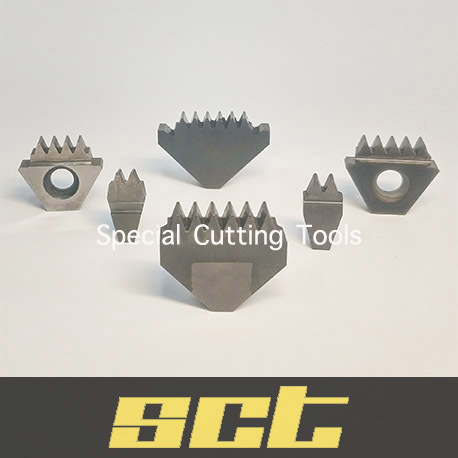

| *** Notes: different insert radius, cutting length, tooth pitch, tooth height ... etc, are on end user's request. |
As a metallic PULLEY GROOVING EXPERT, Sepcial Cutting Tools Co., Ltd. (SCT) not only provides our customers with standard pulley grooving inserts, but also with custom-made V-grooves cutting inserts and their tool-holders on end users' requests.
We sincerely welcome customers to send inquiry to us by the following ways:
 0086 28 8625 0130  sales@special-cutting-tools.com
|
|
