Pulley V Grooving Tools (GPV) - T type ≥ 3 cutting edges on One end
Download Catalogue
P pdf
Picture pdf
How It Works
P youtube
Picture youtube



≡≡ Insert Introductions ≡≡

' T ' series pulley grooving insert is a pulley V-grooves cutting insert with 3 cutting edges and more cutting edges, which largely help promote grooving efficiency, saving time and costs.
Researching and developed by SCT, the brand new automotive belt pulley grooving inserts are receiving good reputation among our worldwide customers:
•  These inserts are made by solid carbide materials.
•  Inserts are especially designed and produced for cutting V grooves in automobile belt pulleys.
•  Support to ‘make ONE-TIME cutting’ for precise machining of V grooves in pulleys.
•  Greatly improve belt pulleys’ machining accuracy and surface roughness.
•  Largely help reduce time in changing of different inserts.
•  Exponentially shorten the machining time on pulleys have multiple V grooves.
•  Make large progress of working efficiency and on product quality.

  ≡≡ Insert Family Members ≡≡

  1)  V type   →  Cutting belt pulley V grooves with ONE cutting edge
  2)  M type  →  Cutting belt pulley V grooves with ONE cutting edge
  3)  L type   →  Cutting belt pulley V grooves with TWO cutting edge
  4)  T type   →  Cutting belt pulley V grooves with THREE & MORE cutting edge
  5)  Custom-made type  →  Cutting belt pulley V-grooves on customer requests


   ≡≡  Workpiece Materials ≡≡


  # (B00)  →  Machining workpiece made in aluminum alloy or bronze alloy.

# (B09)  →  Machining workpiece made in ductile cast iron.
  # (B20)  →  Machining workpiece made in free cutting steel.

# (H10)  →  Machining workpiece made in stainless steel.

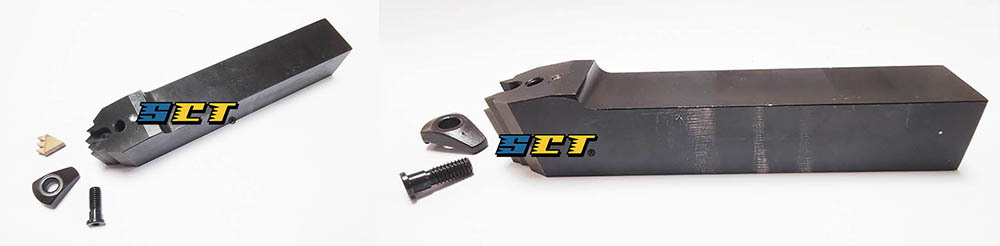

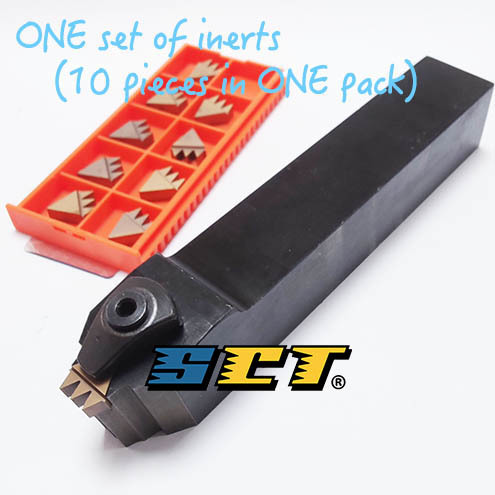

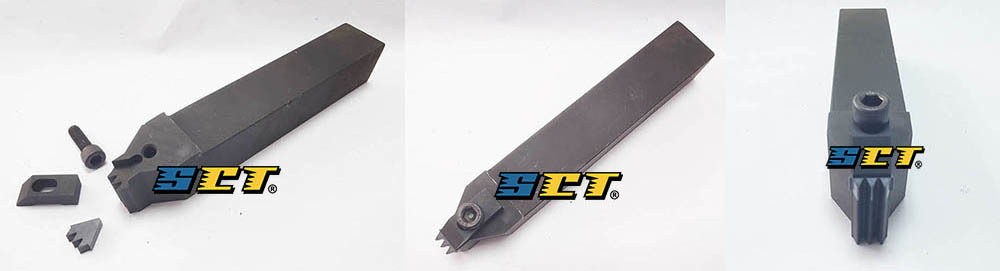

≡≡  Tool-holder ≡≡

Pairing with SCT 's pulley grooving inserts, our tool-holders are made by 42CrMo. SCT suggest all our custoemr to use our tool-holder to pair our inserts. That not only help promote grooving efficiency and grooving precision, but also help extend inserts' working life. Below is the production process:

42CrMo Forging → Tempering → Rough Processing → Quenching → Fine Machining  → Surface Blackening.

When pairing pulley grooving insert with its tool-holder, please ask SCT sales team for suggestions.

    ≡≡  Custom-Made Inserts ≡≡

SCT are providing our worldwide customers with insert-copying, new insert-engineering services. Making satisfied inserts and their tool-holders on our customer's request are our pursuit !

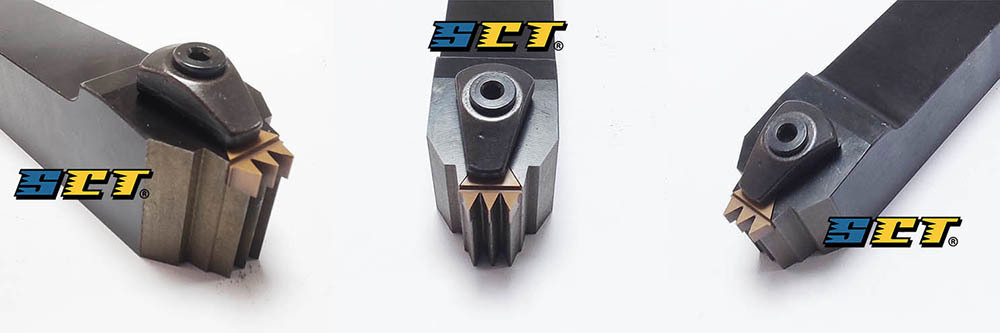

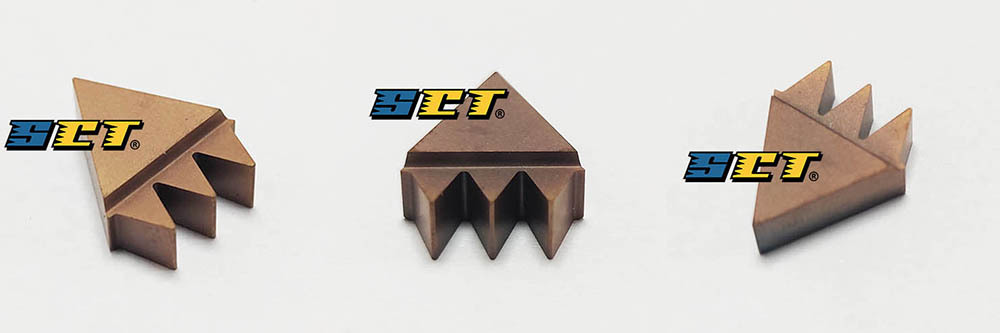

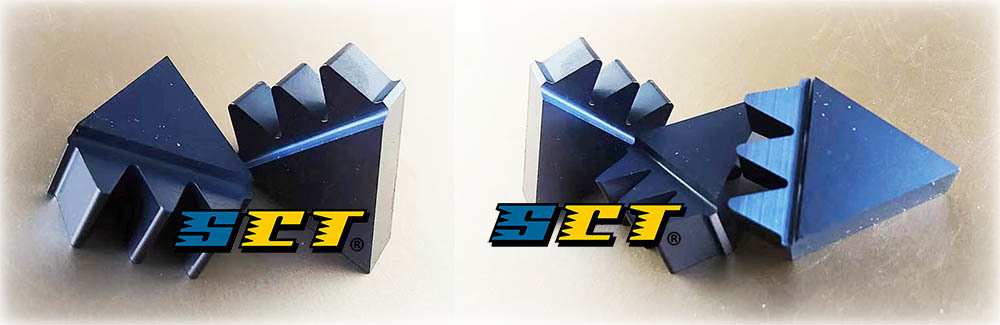

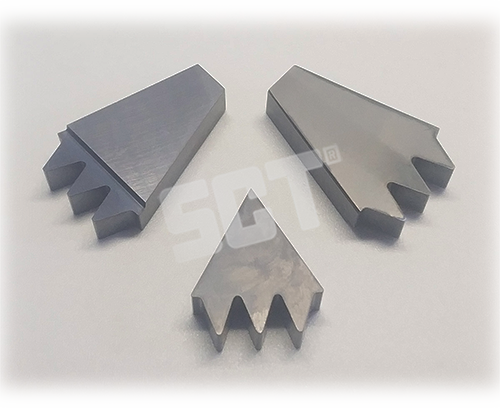

GPV Grooving Inserts with THREE (3) cutting edges on ONE (1) end
Insert Type Shape Tooth / Teeth    Performances
T   ≥ 3

 - High effeciency of machining, more suitable for high precision machining.
 - SCT can design and produce inserts with diiferent edges depend on customers demands.

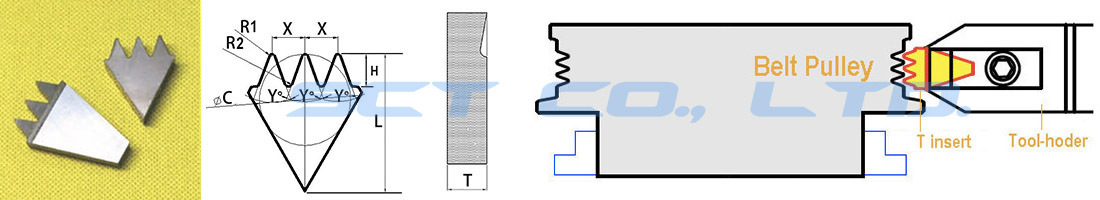

INSERT LIST

Part Numbers Blade Teeth Dimensions (mm)
Y H C X L T R1 R2
PDLTN160412-40356R40R30 1 2 40° 3.54 9.525 3.56 13.79 3.65 0.4 0.3
PDLTN160513-40356R40R30 1 3 40° 3.54 9.525 3.56 13.79 3.65 0.4 0.3
PDLTN220614-40356R40R30 1 4 40° 3.54 12.7 3.56 18.55 3.65 0.4 0.3
PDLTN270715-40356R40R30 1 5 40° 3.54 15.875 3.56 23.31 4.76 0.4 0.3
PDLTN370816-40356R40R30 1 6 40° 3.54 21.5 3.56 31.74 6.35 0.4 0.3
PDLTN160413-40234R20R30 1 3 40° 2.25 9.525 2.34 13.79 3.65 0.2 0.3
PDLTN160514-40234R20R30 1 4 40° 2.25 9.525 2.34 13.79 3.65 0.2 0.3
PDLTN220615-40234R20R30 1 5 40° 2.25 12.7 2.34 18.55 4.76 0.2 0.3
PDLTN220616-40234R20R30 1 6 40° 2.25 12.7 2.34 18.55 4.76 0.2 0.3
 * Other sizes are supplied on request. Please send email to sales@special-cutting-tools.com for further conversation.

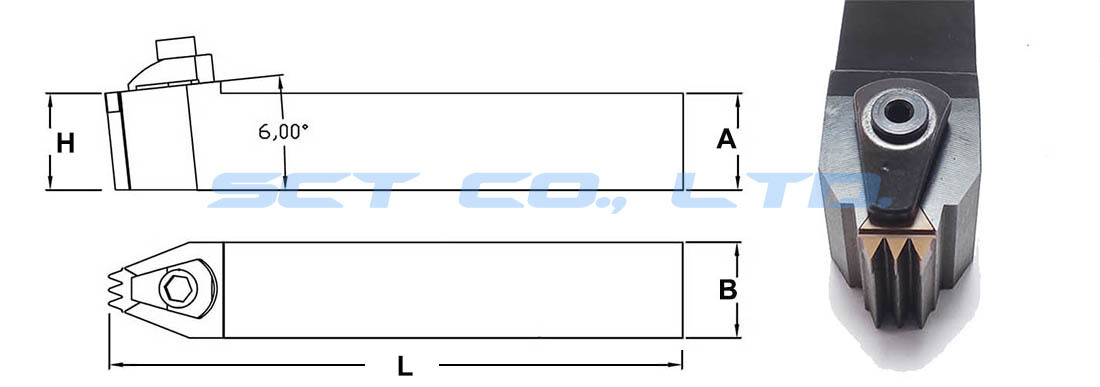

HOLDER LIST
Part Number Teeth Dimensions (mm)
A B L H X Thread
MPDLTN2-403562525M08 2 25 25 150 25 3.56 M08
MPDLTN3-403562525M12 3 25 25 150 25 2.34 M12
MPDLTN4-403562525M15 4 25 25 150 25 3.56 M15
MPDLTN5-403562525M19 5 25 25 150 25 3.56 M19
MPDLTN6-403562525M21 6 25 25 150 25 3.56 M21
MPDLTN3-402342525M08 3 25 25 150 25 3.56 M08
MPDLTN4-402342525M12 4 25 25 150 25 3.56 M12
MPDLTN5-402342525M15 5 25 25 150 25 3.56 M15
MPDLTN6-402342525M15 6 25 25 150 25 3.56 M15
