Grooving Tools & Cut-off Tools - Indexable grooving & threading insert
Download Catalogue
P pdf
Picture pdf
How It Works
P youtube
Picture youtube

This grooving / threading insert is applicable for both external grooving and internal grooving, but the hand of tool is opposite in external and internal machining.

•   It is especially for grooving or threading of circlips and snap rings;
•   It is also called GTGN insert, which is grooving with THREE cutting edges (3 cutting edges);
•   SCT insert is the perfect alternative of tungaloy shallow grooving insert and carmix grooving insert.
•   SCT is enable to provide good SOLUTIONS for customised inserts with different RADIUS, INSERT SIZE & GROOVING WIDTH.





16


ER


1.00


(B00)


Insert Sizes
刀片尺寸
16
22


Insert Function & Hand
刀片方向
ER - External grooving with Right-Hand
IL - Internal grooving with Left-Hand
IR - Internal grooving with Right-Hand
EL - External grooving with Left-Hand​


Grooving Width
切槽宽度
1.00 / 1.20 / 1.40 /
1.70 / 1.80 / 1.90 /
1.95 / 2.00 / 2.20 /
2.25 / 2.50 / 3.00


Workpiece Material
材料编号

(B00)
(B09)
(B20)
(H10)


  * (B00)  →  Machining workpiece made in aluminum alloy or bronze alloy.
  * (B09)  →  Machining workpiece made in ductile cast iron.
  * (B20)  →  Machining workpiece made in free cutting steel.
  * (H10)  →  Machining workpiece made in stainless steel.

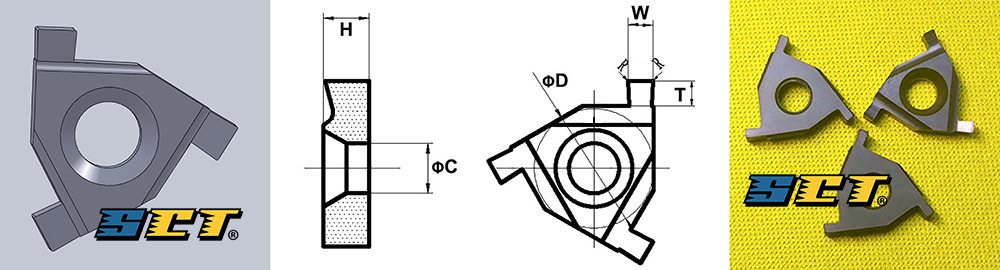

  External & Internal Grooving Insert for Circlip and Snap Ring
Insert No.
(
PVD Coated )
Dimensions (mm)  Workpiece
Material
¢D H C T W R
16ER/IL1.00 16IR/EL1.00 9.525 3.65  4.0  1.00 1.25 0.1 B00 / B09 / B20 / H10
16ER/IL1.20 16IR/EL1.20 1.20 1.30 0.1 B00 / B09 / B20 / H10
16ER/IL1.40 16IR/EL1.40 1.40 1.50 0.1 B00 / B09 / B20 / H10
16ER/IL1.70 16IR/EL1.70 1.70 1.70 0.1 B00 / B09 / B20 / H10
16ER/IL1.95 16IR/EL1.95 1.95 1.70 0.1 B00 / B09 / B20 / H10
16ER/IL2.25 16IR/EL2.25 2.25 1.80 0.1 B00 / B09 / B20 / H10
22ER/IL1.70 22IR/EL1.70 9.525 3.65 5.0 1.70 3.00 0.5 B00 / B09 / B20 / H10
22ER/IL1.80 22IR/EL1.80 1.80 3.00 0.5 B00 / B09 / B20 / H10
22ER/IL1.90 22IR/EL1.90 1.90 3.00 0.5 B00 / B09 / B20 / H10
22ER/IL2.00 22IR/EL2.00 2.00 3.00 0.5 B00 / B09 / B20 / H10
22ER/IL2.20 22IR/EL2.20 2.20 3.00 0.5 B00 / B09 / B20 / H10
22ER/IL2.50 22IR/EL2.50 2.50 3.00 0.5 B00 / B09 / B20 / H10
22ER/IL3.00 22IR/EL3.00 3.00 3.00 0.5 B00 / B09 / B20 / H10

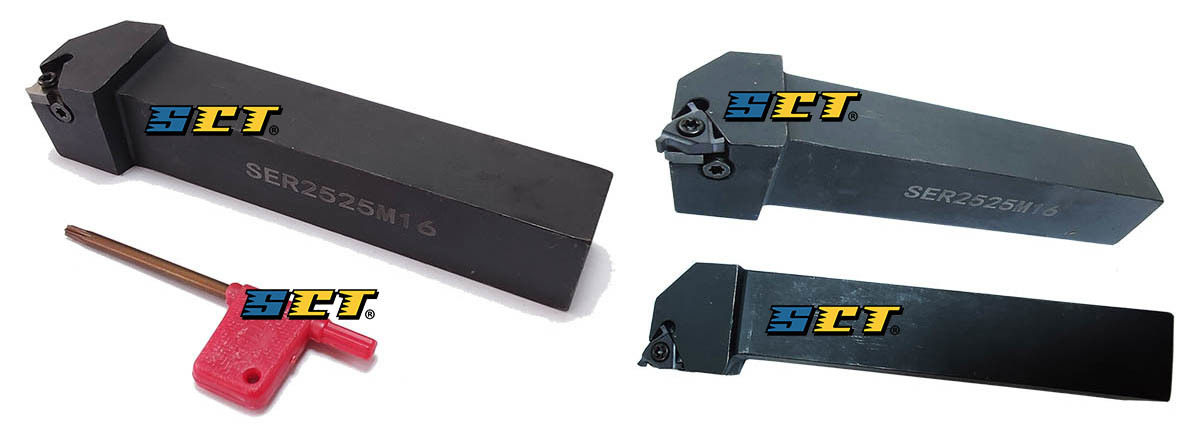

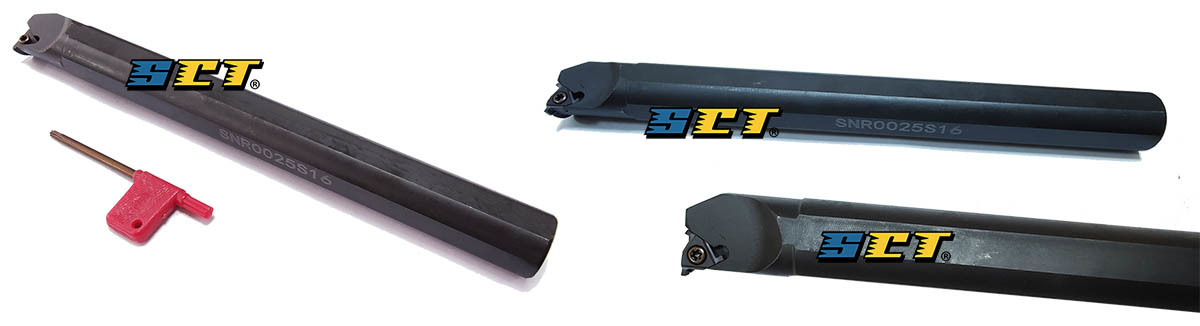

   * Note ➊ : This insert should be used with ISO STANDARD grooving / threading toolholder.
    * Note ➋ : ER =External & Right-hand, IL =Internal & Left-hand, IR =Internal & Right-hand, EL = External & Left-hand.

  Similar External & Internal Grooving Insert for Circlip and Snap Ring
Insert No.
(
PVD Coated )
Dimensions (mm)  Workpiece Material
¢D H C T W R
16ER/IL100 16IR/EL100 9.525 3.65 4 1.00 1.25 0.1 B00 / B09 / B20 / H10
16ER/IL120 16IR/EL120 1.20 1.30 0.1 B00 / B09 / B20 / H10
16ER/IL140 16IR/EL140 1.40 1.50 0.1 B00 / B09 / B20 / H10
16ER/IL170 16IR/EL170 1.70 1.70 0.1 B00 / B09 / B20 / H10
16ER/IL195 16IR/EL195 1.95 1.70 0.1 B00 / B09 / B20 / H10
16ER/IL225 16IR/EL225 2.25 1.80 0.1 B00 / B09 / B20 / H10
22ER/IL170 22IR/EL170 9.525 3.65 5 1.70 3.00 0.5 B00 / B09 / B20 / H10
22ER/IL180 22IR/EL180 1.80 3.00 0.5 B00 / B09 / B20 / H10
22ER/IL190 22IR/EL190 1.90 3.00 0.5 B00 / B09 / B20 / H10
22ER/IL200 22IR/EL200 2.00 3.00 0.5 B00 / B09 / B20 / H10
22ER/IL220 22IR/EL220 2.20 3.00 0.5 B00 / B09 / B20 / H10
22ER/IL250 22IR/EL250 2.50 3.00 0.5 B00 / B09 / B20 / H10
22ER/IL300 22IR/EL300 3.00 3.00 0.5 B00 / B09 / B20 / H10
    * Note ➊ : This insert should be used with ISO STANDARD grooving / threading toolholder.
    * Note ➋ : ER =External & Right-hand, IL =Internal & Left-hand, IR =Internal & Right-hand, EL = External & Left-hand.



Internal grooving and external grooving, our Circlip Grooving Inserts shipped to customer worldwide :


Grooving Inserts GTGN for internal grooving & external grooving




Tungaloy
GTGN-16ER/IL100,GTGN-16ER/IL120,GTGN-16ER/IL140,GTGN-16ER/IL170,GTGN-16ER/IL195,GTGN-16ER/IL225,GTGN-16EL/IR100,GTGN-16EL/IR120,GTGN-16EL/IR140,GTGN-16EL/IR170,GTGN-16EL/IR195,GTGN-16EL/IR225
