| VT13 |
|

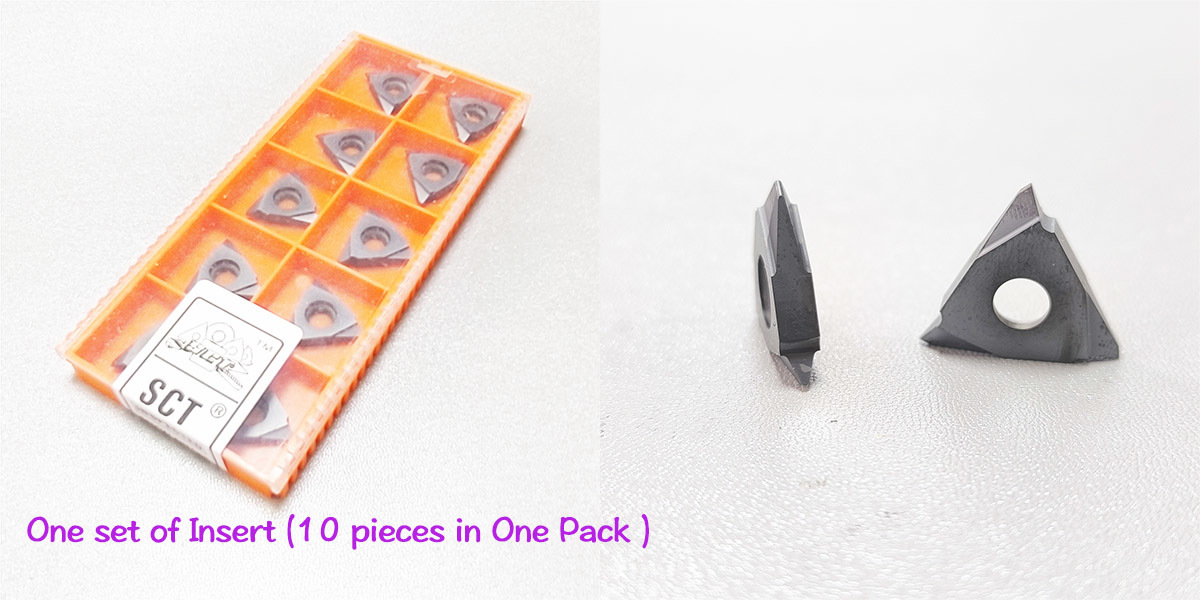

" VT13  " insert is newly designed and developed by SCT.
It is a pulley V-grooves cutting insert with 1 tooth each on its 3 ends.
Basically, it is grooving the V-ribbed pulleys with 1, 2, 3, 4, 5 ... and more grooves.
VT13 insert is one of the most popular & MOST ECONOMICAL one.
You can find more 1 tooth insert " V12  " " M12  " " S14  "
in SCT pulley grooving insert family.
|
| |

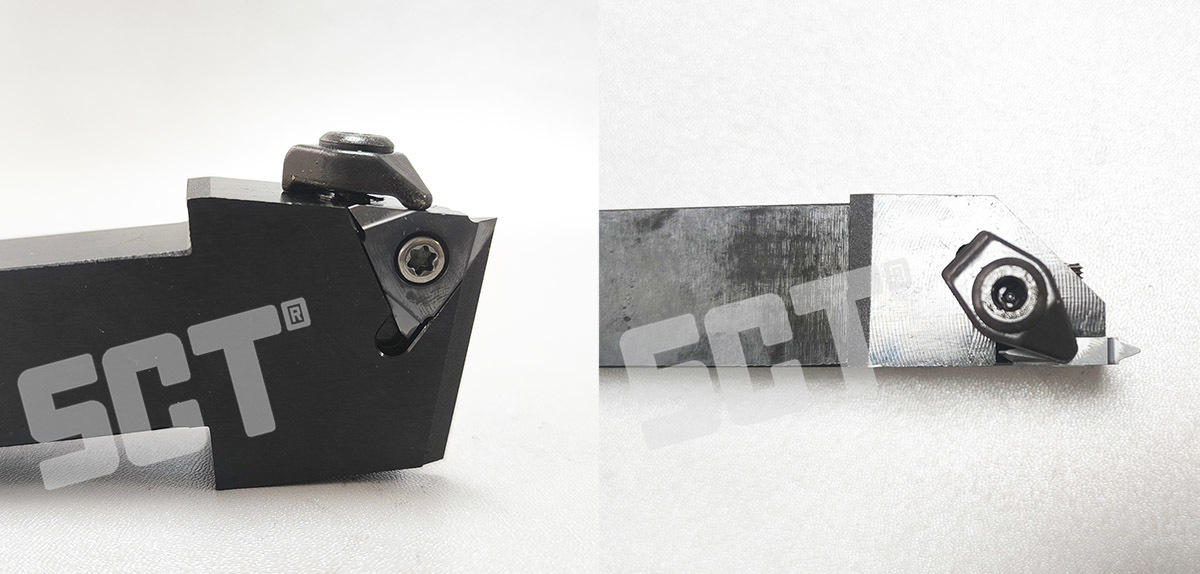

Researching and developed by SCT, the brand new automotive belt pulley grooving inserts are receiving good reputation among our worldwide customers: |
| |
• These inserts are made by solid carbide materials.
• Inserts are especially designed and produced for cutting V grooves in belt pulleys.
• ONE-TIME cutting for precise machining of V grooves in pulleys.
• Greatly improve belt pulleys’ machining accuracy and surface roughness.
• Largely help reduce time in changing of different inserts.
• Exponentially shorten the machining time on pulleys have multiple V grooves.
• Make large progress of working efficiency and on product quality.
|
 |
| Insert Type |
Shape |
Tooth / Ends |
Performances |
| VT13 |
|
1/3 |
- V13 precision insert is with 1 cutting tooth each on its 3 ends;
- VT13 Insert is the popular GPV insert for grooving multi V-ribbed pulleys;
- Similar to iscar gpv inserts, our VT13 insert has the advantages of high-effiency, MOST ECONOMICAL price and good cutting performances.
|
| |

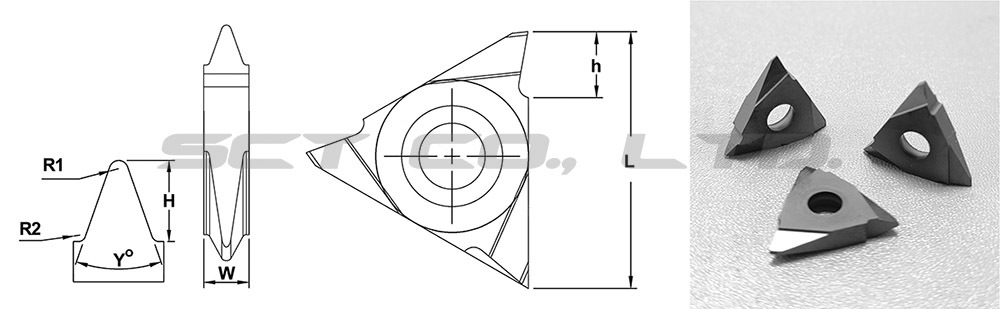

| INSERT LIST |
 |
| Insert Number |
Dimensions (mm) |
Grades |
| Hardened Steel |
Cast Iron |
Stainless Steel |
Aluminum / bronze |
| ( PVD coated) |
Y° |
W |
H |
h |
L |
T |
R1 |
R2 |
RTP115 |
RTP330 |
RTP225 |
RTP000 |
| PDL-VT13-40-13356R40R30 |
40° |
4.00 |
3.45 |
5.50 |
21.35 |
- |
0.40 |
0.30 |
• |
• |
• |
• |
| PDL-VT13-40-13356R42R48 |
40° |
4.00 |
3.16 |
5.50 |
21.35 |
- |
0.42 |
0.48 |
• |
• |
• |
• |
| ... |
... |
... |
... |
γ |
... |
... |
... |
... |
... |
... |
... |
... |
| *** Notes: different insert radius, cutting length, tooth pitch, tooth height ... etc, are on end user's request. |
|
|
