Grooving Tools & Cut-off Tools - TKF cut-off insert for small diameters
Download Catalogue
P pdf
Picture pdf

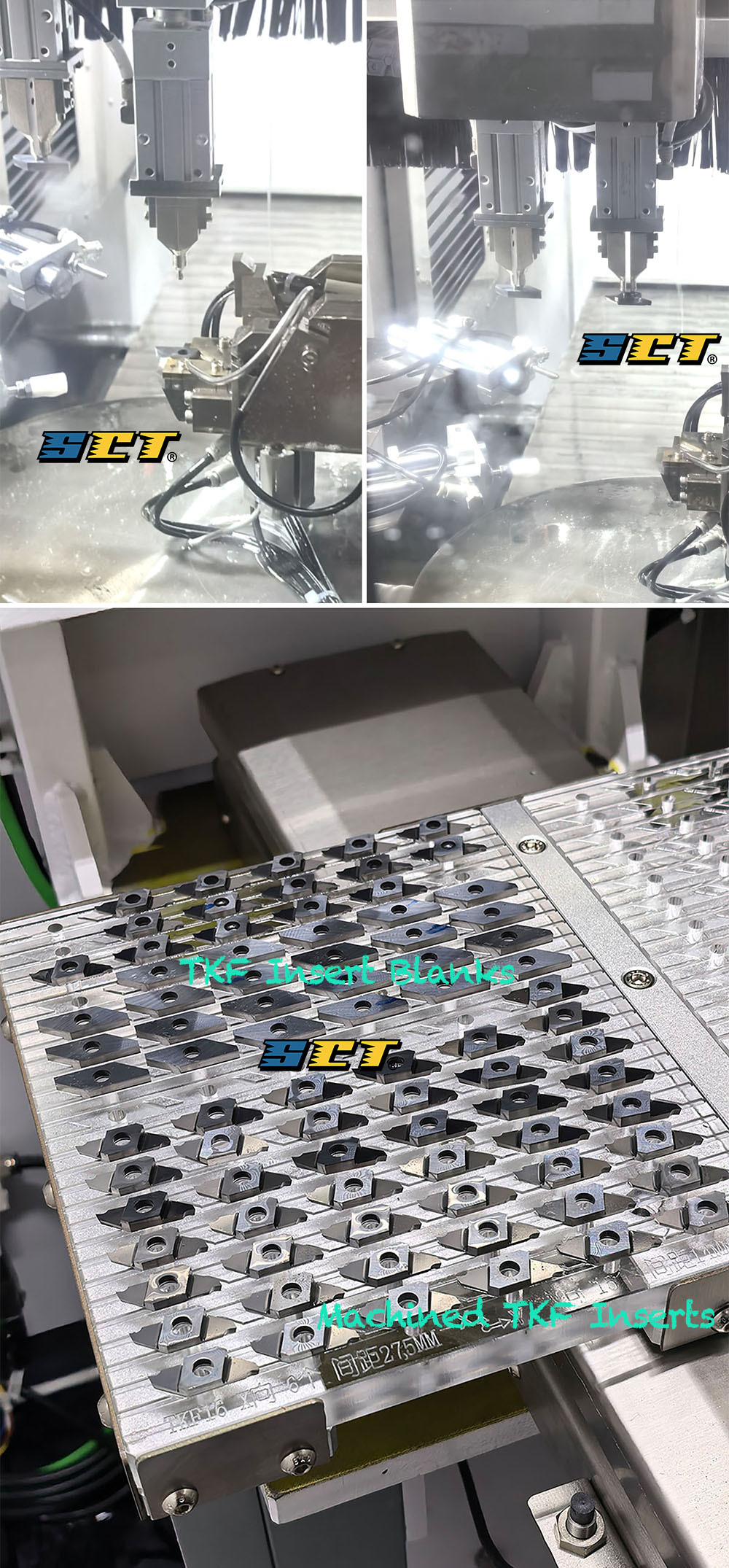

How It Works
P youtube
Picture youtube

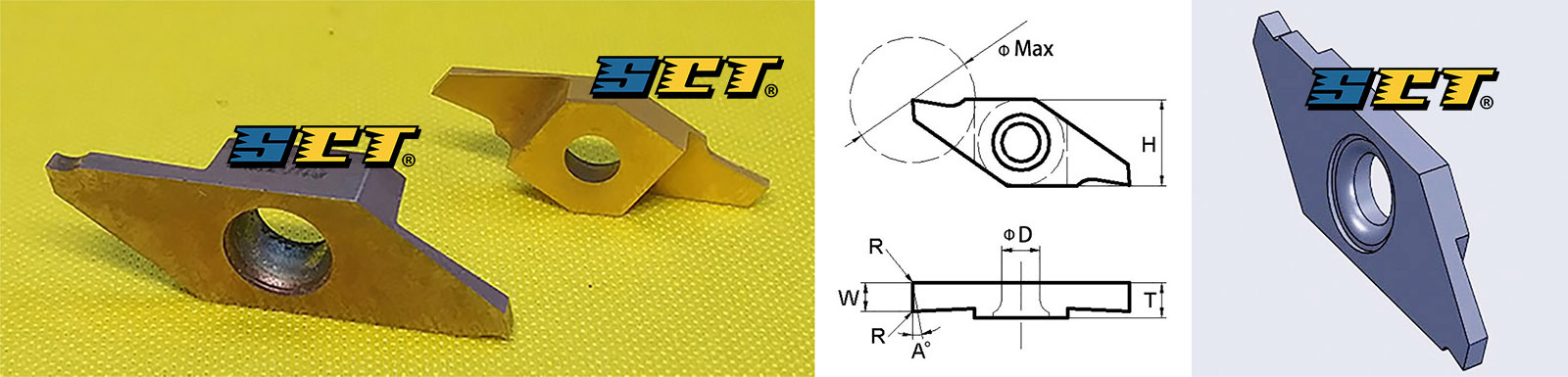

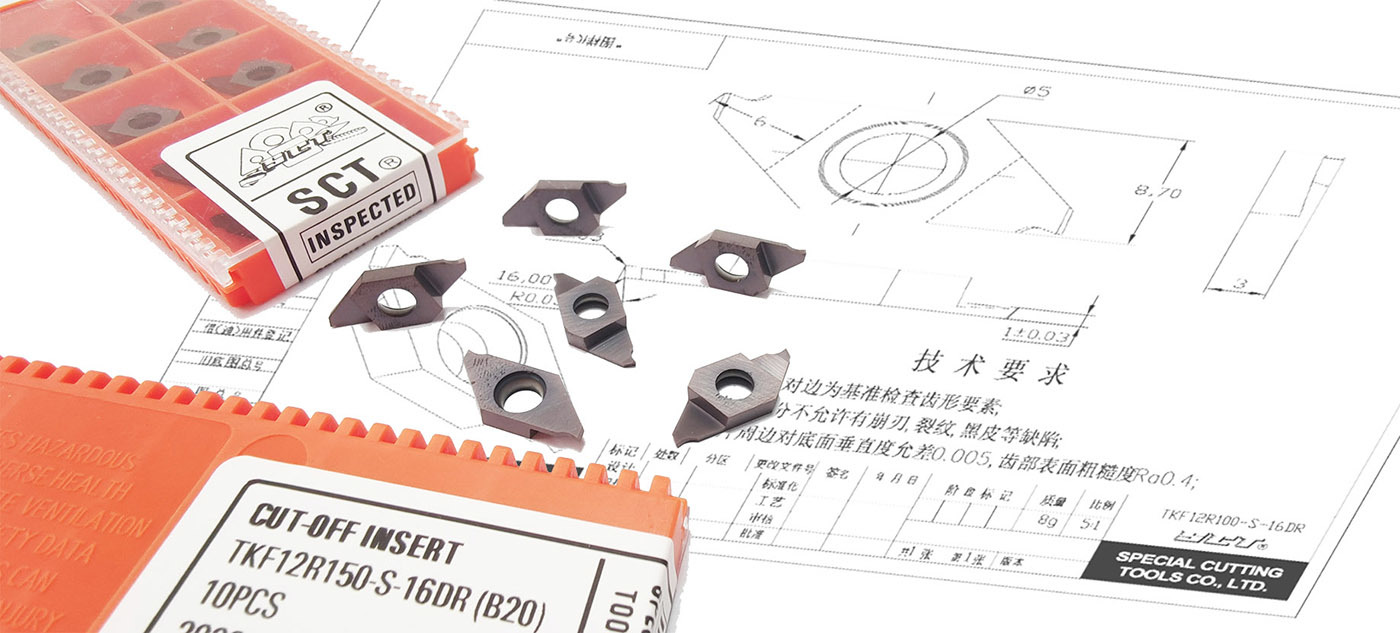

TKF cut-off inserts are working for small diameter cut-off and are applicable to back turning, threading and cut-offwith a single toolholder:

 •  TKF inserts have two kinds of cut-off inserts are available - TKF12 and TKF16;
 •  TKF inserts are machining for micro and small diameters with minimum cut-off width of 0.5mm are available for TK12mm;
 •  ​It is low resistant S Chipbreaker for sharp cutting and tough edge T Chipbreaker for high feed and interrupted cut-off;
 •  In stainless steel cutting, extended tool life; Sharp corner radius of 0.0 available on inserts without chipbreakers.



TKF


12


R


050-


S-


16D


R


(B09)

Insert Name
刀片名

Insert Size
刀片尺寸

Insert Hand
刀片方向

R: Right-hand
右手刀

L: Left-hand
左手刀

Width
刃宽

Name of Chip-breaker
断屑槽型号

S: S-Chip-breaker
  S-断屑槽


T: T-Chip-breaker (Tough Edge)
  T-断屑槽(刃口强化型)

NB:No chip-breaker
    无断屑槽

Lead Angle (θ)
导程角

(Front Cutting Edge Angle)
(前切削刃角度)

Lead Angle Hand
导程角方向

R: Right-hand
右手刀

L: Left-hand
左手刀

Material Code
 材料编号
#

(B00)
(B09)
(B20)
(H10)

 (B00)  →  Machining workpiece made in aluminum alloy or bronze alloy.

# (B09)  →  Machining workpiece made in ductile cast iron.

# (B20)  →  Machining workpiece made in free cutting steel.

# (H10)  →  Machining workpiece made in stainless steel.



 Part Number of TKF12 Cut-off Inserts

TKF12 insert number Dimensions (mm)  Workpiece Material
(Optional)
Right hand Left hand W ¢max R T H D A
TKF12R050-S-16DR TKF12L050-S-16DL 0.5 5 0.03 3 8.7 5 16° SL15 SL25
TKF12R070-S-16DR TKF12L070-S-16DL 0.7 8 0.03 3 8.7 5 16° SL15 SL25
TKF12R100-S-16DR TKF12L100-S-16DL 1.0 12 0.03 3 8.7 5 16° SL15 SL25
TKF12R125-S-16DR TKF12L125-S-16DL 1.25 12 0.03 3 8.7 5 16° SL15 SL25
TKF12R150-S-16DR TKF12L150-S-16DL 1.5 12 0.03 3 8.7 5 16° SL15 SL25
TKF12R200-S-16DR TKF12L200-S-16DL 2.0 12 0.03 3 8.7 5 16° SL15 SL25
TKF12R050-S TKF12L050-S 0.5 5 0.03 3 8.7 5 SL15 SL25
TKF12R070-S TKF12L070-S 0.7 8 0.03 3 8.7 5 SL15 SL25
TKF12R100-S TKF12L100-S 1.0 12 0.03 3 8.7 5 SL15 SL25
TKF12R125-S TKF12L125-S 1.25 12 0.03 3 8.7 5 SL15 SL25
TKF12R150-S TKF12L150-S 1.5 12 0.03 3 8.7 5 SL15 SL25
TKF12R200-S TKF12L200-S 2.0 12 0.03 3 8.7 5 SL15 SL25
TKF12R100-T-16DR TKF12L100-T-16DL 1.0 12 0.08 3 8.7 5 16° SL15 SL25
TKF12R150-T-16DR TKF12L150-T-16DL 1.5 12 0.08 3 8.7 5 16° SL15 SL25
TKF12R200-T-16DR TKF12L200-T-16DL 2.0 12 0.08 3 8.7 5 16° SL15 SL25
TKF12R100-T TKF12L100-T 1.0 12 0.08 3 8.7 5 SL15 SL25
TKF12R150-T TKF12L150-T 1.5 12 0.08 3 8.7 5 SL15 SL25
TKF12R200-T TKF12L200-T 2.0 12 0.08 3 8.7 5 SL15 SL25
TKF12R050-NB-20DR TKF12L050-NB-20DL 0.5 5 0 3 8.7 5 20° SL15 SL25
TKF12R070-NB-20DR TKF12L070-NB-20DL 0.7 8 0 3 8.7 5 20° SL15 SL25
TKF12R100-NB-20DR TKF12L100-NB-20DL 1.0 12 0 3 8.7 5 20° SL15 SL25
TKF12R150-NB-20DR TKF12L150-NB-20DL 1.5 12 0 3 8.7 5 20° SL15 SL25
TKF12R200-NB-20DR TKF12L200-NB-20DL 2.0 12 0 3 8.7 5 20° SL15 SL25
TKF12R050-NB TKF12L050-NB 0.5 5 0 3 8.7 5 SL15 SL25
TKF12R070-NB TKF12L070-NB 0.7 8 0 3 8.7 5 SL15 SL25
TKF12R100-NB TKF12L100-NB 1.0 12 0 3 8.7 5 SL15 SL25
TKF12R150-NB TKF12L150-NB 1.5 12 0 3 8.7 5 SL15 SL25
TKF12R200-NB TKF12L200-NB 2.0 12 0 3 8.7 5 SL15 SL25

 Part Number of TKF16 Cut-off Inserts

TKF16 insert number Dimensions (mm)  Workpiece Material
(Optional)
Right hand (R) Left hand (L) W ¢max R T H D A
TKF16R/L150-S-16DR 1.5 16 0.05 4 9.5 5 16° SL15 SL25
TKF16R/L200-S-16DR 2 16 0.05 4 9.5 5 16° SL15 SL25
TKF16R/L150-S 1.5 16 0.05 4 9.5 5 SL15 SL25
TKF16R/L200-S 2 16 0.05 4 9.5 5 SL15 SL25
TKF16R/L150-T-16DR 1.5 16 0.08 4 9.5 5 16° SL15 SL25
TKF16R/L200-T-16DR 2 16 0.08 4 9.5 5 16° SL15 SL25
TKF16R/L150-T 1.5 16 0.08 4 9.5 5 SL15 SL25
TKF16R/L200-T 2 16 0.08 4 9.5 5 SL15 SL25
TKF16R/L150-NB-20DR 1.5 16 0 4 9.5 5 20° SL15 SL25
TKF16R200-NB-20DR 2 16 0 4 9.5 5 20° SL15 SL25
TKF16R/L150-NB 1.5 16 0 4 9.5 5 SL15 SL25
TKF16R/L200-NB 2 16 0 4 9.5 5 SL15 SL25














TKF12R050-S-16DR,TKF12R070-S-16DR,TKF12R100-S-16DR,TKF12R125-S-16DR,TKF12R150-S-16DR,TKF12R200-S-16DR,TKF12R050-S,TKF12R070-S,TKF12R100-S,TKF12R125-S,TKF12R150-S,TKF12R200-S,TKF12R100-S-16DR,TKF12R150-S-16DR,TKF12R200-S-16DR,TKF12R100-T,TKF12R150-T,TKF12R200-T,TKF12R050-NB-20DR,TKF12R070-NB-20DR,TKF12R100-NB-20DR,TKF12R150-NB-20DR,TKF12R200-NB-20DR,TKF12R050-NB,TKF12R070-NB,TKF12R100-NB,TKF12R150-NB,TKF12R200-NB,

TKF12L050-S-16DL,TKF12L070-S-16DL,TKF12L100-S-16DL,TKF12L125-S-16DL,TKF12L150-S-16DL,TKF12L200-S-16DL,TKF12L050-S,TKF12L070-S,TKF12L100-S,TKF12L125-S,TKF12L150-S,TKF12L200-S,TKF12L100-S-16DL,TKF12L150-S-16DL,TKF12L200-S-16DL,TKF12L100-T,TKF12L150-T,TKF12L200-T,TKF12L050-NB-20DL,TKF12L070-NB-20DL,TKF12L100-NB-20DL,TKF12L150-NB-20DL,TKF12L200-NB-20DL,TKF12L050-NB,TKF12L070-NB,TKF12L100-NB,TKF12L150-NB,TKF12L200-NB,

TKF12R/L050-S-16DL,TKF12R/L070-S-16DL,TKF12R/L100-S-16DL,TKF12R/L125-S-16DL,TKF12R/L150-S-16DL,TKF12R/L200-S-16DL,TKF12R/L050-S,TKF12R/L070-S,TKF12R/L100-S,TKF12R/L125-S,TKF12R/L150-S,TKF12R/L200-S,TKF12R/L100-S-16DL,TKF12R/L150-S-16DL,TKF12R/L200-S-16DL,TKF12R/L100-T,TKF12R/L150-T,TKF12R/L200-T,TKF12R/L050-NB-20DL,TKF12R/L070-NB-20DL,TKF12R/L100-NB-20DL,TKF12R/L150-NB-20DL,TKF12R/L200-NB-20DL,TKF12R/L050-NB,TKF12R/L070-NB,TKF12R/L100-NB,TKF12R/L150-NB,TKF12R/L200-NB,



TKF12R050-S-16DR, TKF12R070-S-16DR, TKF12R100-S-16DR, TKF12R125-S-16DR, TKF12R150-S-16DR, TKF12R200-S-16DR, TKF12R050-S, TKF12R070-S, TKF12R100-S, TKF12R125-S, TKF12R150-S, TKF12R200-S, TKF12R100-S-16DR, TKF12R150-S-16DR, TKF12R200-S-16DR, TKF12R100-T, TKF12R150-T, TKF12R200-T, TKF12R050-NB-20DR, TKF12R070-NB-20DR, TKF12R100-NB-20DR, TKF12R150-NB-20DR, TKF12R200-NB-20DR, TKF12R050-NB, TKF12R070-NB, TKF12R100-NB, TKF12R150-NB, TKF12R200-NB,

TKF12L050-S-16DL, TKF12L070-S-16DL, TKF12L100-S-16DL, TKF12L125-S-16DL, TKF12L150-S-16DL, TKF12L200-S-16DL, TKF12L050-S, TKF12L070-S, TKF12L100-S, TKF12L125-S, TKF12L150-S, TKF12L200-S, TKF12L100-S-16DL, TKF12L150-S-16DL, TKF12L200-S-16DL, TKF12L100-T, TKF12L150-T, TKF12L200-T, TKF12L050-NB-20DL, TKF12L070-NB-20DL, TKF12L100-NB-20DL, TKF12L150-NB-20DL, TKF12L200-NB-20DL, TKF12L050-NB, TKF12L070-NB, TKF12L100-NB, TKF12L150-NB, TKF12L200-NB,

TKF12R/L050-S-16DL, TKF12R/L070-S-16DL, TKF12R/L100-S-16DL, TKF12R/L125-S-16DL, TKF12R/L150-S-16DL, TKF12R/L200-S-16DL, TKF12R/L050-S, TKF12R/L070-S, TKF12R/L100-S, TKF12R/L125-S, TKF12R/L150-S, TKF12R/L200-S, TKF12R/L100-S-16DL, TKF12R/L150-S-16DL, TKF12R/L200-S-16DL, TKF12R/L100-T, TKF12R/L150-T, TKF12R/L200-T, TKF12R/L050-NB-20DL, TKF12R/L070-NB-20DL, TKF12R/L100-NB-20DL, TKF12R/L150-NB-20DL, TKF12R/L200-NB-20DL, TKF12R/L050-NB, TKF12R/L070-NB, TKF12R/L100-NB, TKF12R/L150-NB, TKF12R/L200-NB
