Pulley V Grooving Tools (GPV) - V type - 1 cutting edge on Two ends
Download Catalogue
P pdf
Picture pdf
How It Works
P youtube
Picture youtube



≡≡ Insert Introductions ≡≡

' V ' series pulley grooving insert is a pulley V-grooves cutting insert with ONE cutting edge. It is the most economic one in SCT pulley grooving inserts family.
Researching and developed by SCT, the brand new automotive belt pulley grooving inserts are receiving good reputation among our worldwide customers:

•  These inserts are made by solid carbide materials.
•  Inserts are especially designed and produced for cutting V grooves in automobile belt pulleys.
•  Support to ‘make ONE-TIME cutting’ for precise machining of V grooves in pulleys.
•  Greatly improve belt pulleys’ machining accuracy and surface roughness.
•  Largely help reduce time in changing of different inserts.
•  Exponentially shorten the machining time on pulleys have multiple V grooves.
•  Make large progress of working efficiency and on product quality.

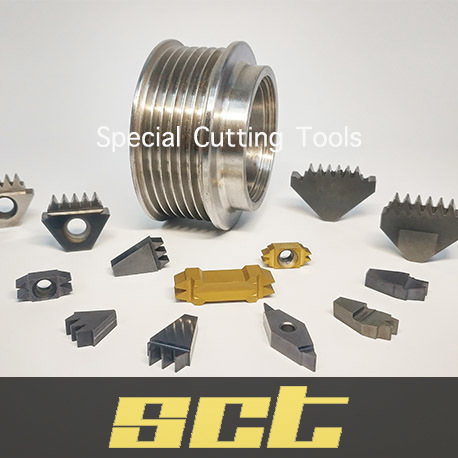

  ≡≡ Insert Family Members ≡≡

  1)  V type  →  Cutting belt pulley V grooves with ONE cutting edge
  2)  M type  →  Cutting belt pulley V grooves with ONE cutting edge
  3)  L type  →  Cutting belt pulley V grooves with TWO cutting edge
  4)  T type  →  Cutting belt pulley V grooves with THREE & MORE cutting edge
  5)  Custom-made type  →  Cutting belt pulley V-grooves on customer requests


  ≡≡  Workpiece Materials ≡≡


  # (B00)  →  Machining workpiece made in aluminum alloy or bronze alloy.

# (B09)  →  Machining workpiece made in ductile cast iron.
  # (B20)  →  Machining workpiece made in free cutting steel.

# (H10)  →  Machining workpiece made in stainless steel.




≡≡  Tool-Holder ≡≡

Pairing with SCT 's pulley grooving inserts, our tool-holders are made by 42CrMo. SCT suggest all our custoemr to use our tool-holder to pair our inserts. That not only help promote grooving efficiency and grooving precision, but also help extend inserts' working life. Below is the production process:

42CrMo Forging → Tempering → Rough Processing → Quenching → Fine Machining  → Surface Blackening.


When pairing pulley grooving insert with its tool-holder, please ask SCT sales team for suggestions.

    ≡≡  Custom-Made Inserts ≡≡

SCT are providing our worldwide customers with insert-copying, new insert-engineering services. Making satisfied inserts and their tool-holders on our customer's request are our pursuit !

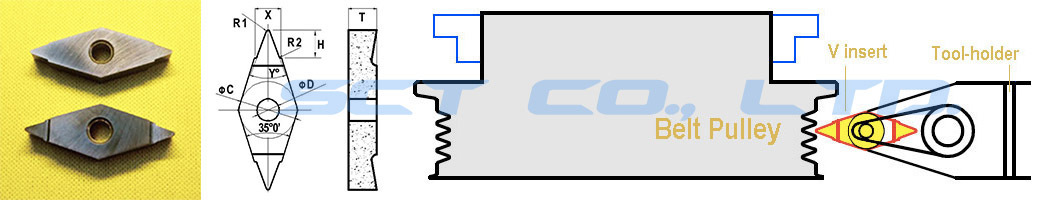

GPV Grooving Inserts with ONE (1) cutting edge on TWO (2) ends
Insert Type Shape Tooth / Teeth   Performances
V   1  - V type inserts are of good stiffness with small resistance of cutting force;
 - When processing deeper grooves, V inert is the good solution of machining interference;
 - The tool-holder is general and universal.
INSERT LIST
Part Number Dimensions (mm)
H X D R1 R2 T C
PDLVB160412-40234R40R30 40° 1.86 2.34 3.6 0.4 0.3 4.76 9.525
PDLVB160412-40234R30R30 40° 1.87 2.34 3.6 0.3 0.3 4.76 9.525
PDLVB160412-40234R20R30 40° 2.05 2.34 3.6 0.2 0.3 4.76 9.525
PDLVB160412-40234R20R40 40° 2.06 2.34 3.6 0.2 0.4 4.76 9.525
PDLVB160412-40356R50R40 40° 3.16 3.56 3.6 0.5 0.4 4.76 9.525
PDLVB160412-40356R40R40 40° 3.35 3.56 3.6 0.4 0.4 4.76 9.525
PDLVB160412-40356R40R30 40° 3.54 3.56 3.6 0.4 0.3 4.76 9.525
PDLVB160412-40356R30R30 40° 3.74 3.56 3.6 0.3 0.3 4.76 9.525
PDLVB160412-40356R40R20 40° 3.74 3.56 3.6 0.4 0.2 4.76 9.525
PDLVB160412-40356R20R30 40° 3.92 3.56 3.6 0.2 0.3 4.76 9.525
 * Other sizes are supplied on request. Please send email to sales@special-cutting-tools.com for further conversation.

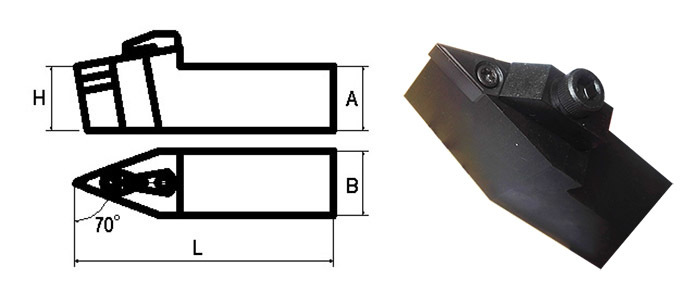

HOLDER LIST
VB tool holder      VN tool holder
Part No. A B L H Part No. A B L H
SPDLVB1-403562020M16 20 20 150 20 SPDLVN16041-403562020M16 20 20 150 20
SPDLVB1-403562525M16 25 25 150 25 SPDLVN16041-403562525M16 25 25 150 25
SPDLVB1-402342020M16 20 20 150 20 SPDLVN16041-402342020M16 20 20 150 20
SPDLVB1-402342525M16 25 25 150 25 SPDLVN16041-402342525M16 25 25 150 25

 How to Order:

  •  Ordering Insert

     Example 1 :   V - type, Pulley Grooving Insert, SINGLE cutting edge PDLVB160412-40234R40R30(B09)
      PDLVB160412-40234R40R30(B09) inserts for grooving of CAST IRON PULLEY.

  Example 2 :   V - type, Pulley Grooving Insert, SINGLE cutting edge → PDLVB160412-40234R20R30(B20)
       PDLVB160412-40234R40R30(B20) inserts for grooving of FREE CUTTING STEEL PULLEY.

  Example 3 :   V - type, Pulley Grooving Insert, SINGLE cutting edge → PDLVB160412-40XR40R(B00)
       PDLVB160412-40XR40R(B00) inserts for grooving of ALUMINUM PULLEY & CASTING BRONZE PULLEY.

  •  Ordering Tool-Holder

  Example 1 :   VB type tool-holder → SPDLVB1-403562020M16

  Example 2 :   VN type tool-holder → SPDLVN16041-403562020M16

          Download Catalogue                    Watch Us on YouTube

  • Catalogue Name: pulley grooving tools, inserts, toolholders       • Vidio Name: pulley grooving tools, inserts, toolholders
  • Size: 4.40 MB       • Size: 11.20 MB
  • Click the picture to Download       • Click the picture to Watch

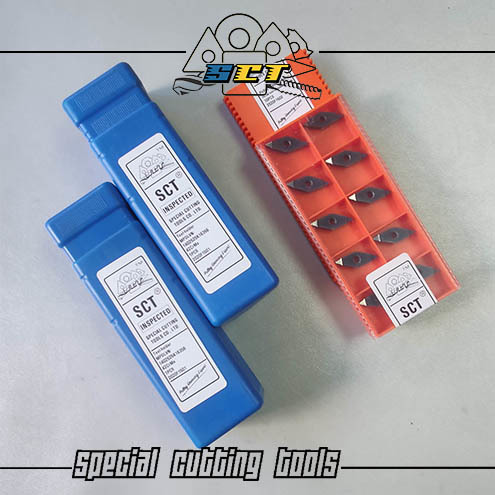

 V-Pulleys Grooving Inserts & Holders shipped to our customers worldwide :


Pulley V grooving inserts
for v-ribbed pulleys
  One-blade grooving insert
for V pulleys
  GPV grooving tools
for V-pulleys

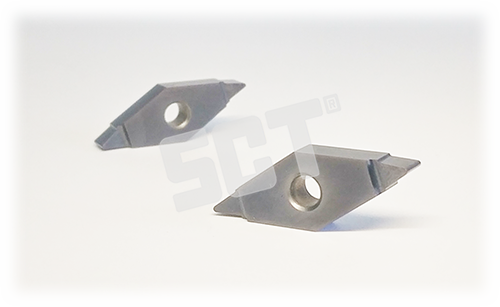

  Pulley V grooving inserts
with 1 cutting edge




















PDLVB160412-40234R40R30,PDLVB160412-40234R20R30,PDLVB160412-40XR40R,PDLVN160412-40356R40R30,PDLVN160412-40234R40R30,PDLVN160412-40XR40R30,SPDLVB1-403562020M16,SPDLVB1-403562525M16,SPDLVB1-402342020M16,SPDLVB1-402342525M16,SPDLVN16041-403562020M16,SPDLVN16041-403562525M16,SPDLVN16041-402342020M16,SPDLVN16041-402342525M16,​iscar,GPV 3-2.34-1,GPV 4-3.56-1,GPV 8-2.34-3,GPV 14-2.34-4,GPV 14-3.56-3,GPV 17-3.56-4
