Grooving Tools & Cut-off Tools - GBA grooving inserts - 3 cutting edges
Download Catalogue
P pdf
Picture pdf
How It Works
P youtube
Picture youtube

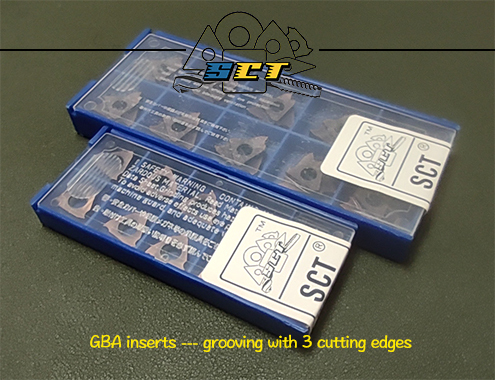

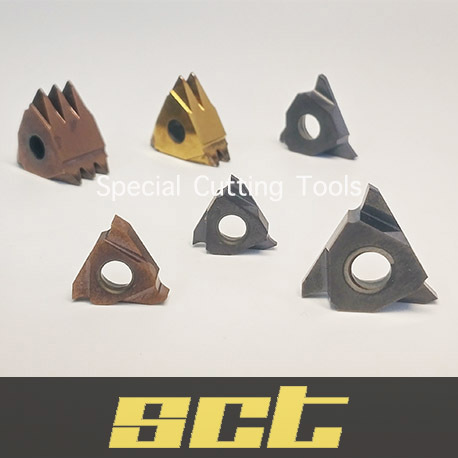

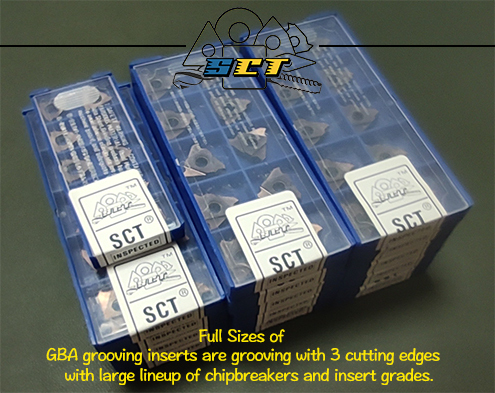

GBA grooving inserts are grooving with 3 cutting edges with large lineup of chipbreakers and insert grades.
Piture


GBA


32


R


050-


005


(B09)


Insert Name
刀片名


Insert Sizes
刀片尺寸

32:Inscribed Circle¢D: 9.525
    内切圆¢D: 9.525

43:Inscribed Circle ¢D: 12.7
    内切圆¢D: 12.7


Insert Hand
刀片方向

R: Right-hand 右手刀

L: Left-hand 左手刀


Insert Width
刃宽


Corner Radius (R)
刀尖圆弧 (R)


Material Code
材料编号 #

(B00)
(B09)
(B20)
(H10)



# (B00)  →  Machining workpiece made in aluminum alloy or bronze alloy.

# (B09)  →  Machining workpiece made in ductile cast iron.

  # (B20)  →  Machining workpiece made in free cutting steel.

# (H10)  →  Machining workpiece made in stainless steel.

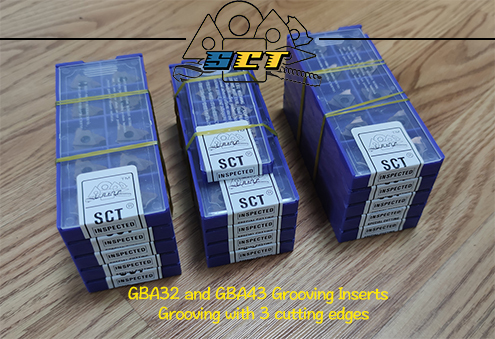

 ■ Part number of GBA32 grooving inserts

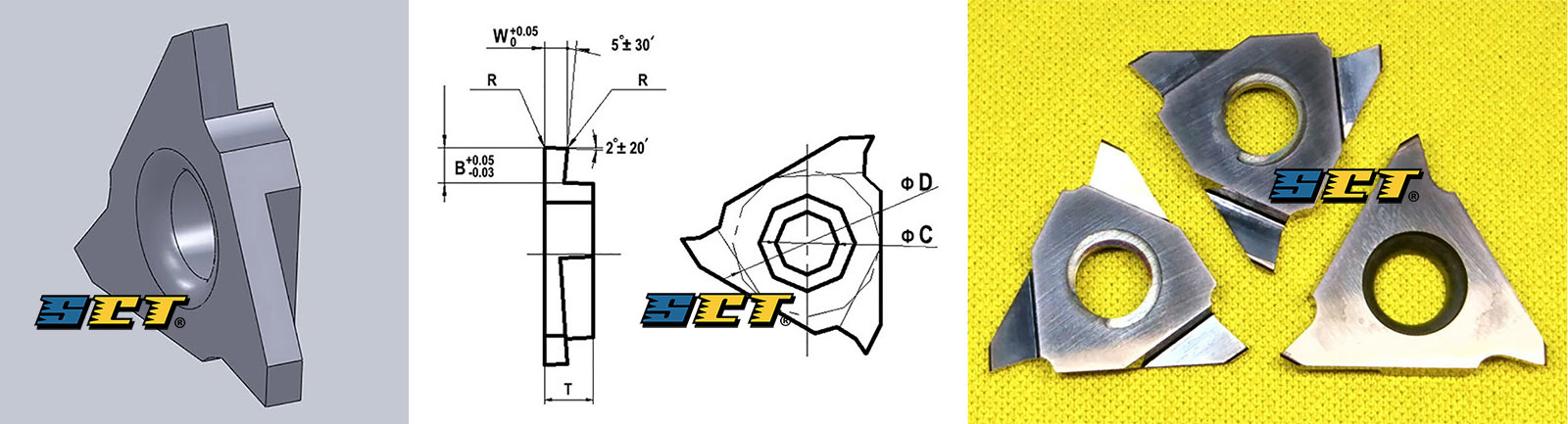

GBA32 Insert Number Dimensions (mm)  Workpice Material
(PVD Coated)
Right-hand Left-hand ¢D ¢C T W B R
GBA32R050-005 GBA32L050-005 9.525 4.4 3.18 0.5 1.0 0.05 B00 / B09 / B20 / H10
GBA32R075-005 GBA32L075-005 0.75 2.0 0.05 B00 / B09 / B20 / H10
GBA32R095-005 GBA32L095-005 0.95 2.0 0.05 B00 / B09 / B20 / H10
GBA32R100-005 GBA32L100-005 1.0 2.0 0.05 B00 / B09 / B20 / H10
GBA32R110-005 GBA32L110-005 1.1 2.0 0.05 B00 / B09 / B20 / H10
GBA32R120-005 GBA32L120-005 1.2 2.0 0.05 B00 / B09 / B20 / H10
GBA32R125-020 GBA32L125-020 1.25 2.0 0.2 B00 / B09 / B20 / H10
GBA32R130-020 GBA32L130-020 1.3 2.0 0.2 B00 / B09 / B20 / H10
GBA32R140-020 GBA32L140-020 1.4 2.5 0.2 B00 / B09 / B20 / H10
GBA32R145-020 * GBA32L145-020 * 1.45 2.0 / 2.5 0.2 B00 / B09 / B20 / H10
GBA32R150-020 * GBA32L150-020 * 1.5 2.0 / 2.5 0.2 B00 / B09 / B20 / H10
GBA32R160-020 GBA32L160-020 1.6 2.5 0.2 B00 / B09 / B20 / H10
GBA32R170-020 GBA32L170-020 1.7 2.5 0.2 B00 / B09 / B20 / H10
GBA32R175-020 * GBA32L175-020 * 1.75 2.0 / 2.5 0.2 B00 / B09 / B20 / H10
GBA32R200-020 GBA32L200-020 2.0 2.5 0.2 B00 / B09 / B20 / H10
GBA32R225-020 GBA32L225-020 2.25 2.5 0.2 B00 / B09 / B20 / H10
GBA32R250-020 GBA32L250-020 2.5 2.5 0.2 B00 / B09 / B20 / H10
GBA32R300-020 GBA32L300-020 3.0 2.5 0.2 B00 / B09 / B20 / H10
        Note: " * "  means insert is Optional in Size " B ".

 ■ Part number of GBA43 grooving inserts

GBA43 Insert Number Dimensions (mm)  Workpice Material
Right-hand Left-hand ¢D ¢C T W B R (PVD Coated)
GBA43R125-010 GBA43L125-010 12.7 5.2 4.76 1.25 2.0 0.1 B00 / B09 / B20 / H10
GBA43R125-020 GBA43L125-020 1.25 2.0 0.1 B00 / B09 / B20 / H10
GBA43R140-020 GBA43L140-020 1.4 2.0 0.2 B00 / B09 / B20 / H10
GBA43R145-020 * GBA43L145-020 * 1.45 2.0 / 3.0 0.2 B00 / B09 / B20 / H10
GBA43R150-010 GBA43L150-010 1.5 3.5 0.1 B00 / B09 / B20 / H10
GBA43R150-020 GBA43L150-020 1.5 3.5 0.2 B00 / B09 / B20 / H10
GBA43R170-020 GBA43L170-020 1.7 3.5 0.2 B00 / B09 / B20 / H10
GBA43R175-020 GBA43L175-020 1.7 3.5 0.2 B00 / B09 / B20 / H10
GBA43R185-020 GBA43L185-020 1.85 3.5 0.2 B00 / B09 / B20 / H10
GBA43R195-020 GBA43L195-020 1.95 3.5 0.2 B00 / B09 / B20 / H10
GBA43R200-010 GBA43L200-010 2.0 3.5 0.1 B00 / B09 / B20 / H10
GBA43R200-020 GBA43L200-020 2.0 3.5 0.2 B00 / B09 / B20 / H10
GBA43R225-020 GBA43L225-020 2.25 3.5 0.2 B00 / B09 / B20 / H10
GBA43R230-020 GBA43L230-020 2.3 3.5 0.2 B00 / B09 / B20 / H10
GBA43R250-010 GBA43L250-010 2.5 5.0 0.1 B00 / B09 / B20 / H10
GBA43R250-030 * GBA43L250-030 * 2.5 4.0 / 5.0 0.3 B00 / B09 / B20 / H10
GBA43R265-030 * GBA43L265-030 * 2.65 4.0 / 5.0 0.3 B00 / B09 / B20 / H10
GBA43R280-030 * GBA43L280-030 * 2.8 4.0 / 5.0 0.3 B00 / B09 / B20 / H10
GBA43R300-010 GBA43L280-030 2.8 5.0 0.1 B00 / B09 / B20 / H10
GBA43R325-030 GBA43L325-030 3.25 5.0 0.3 B00 / B09 / B20 / H10
GBA43R330-030 * GBA43L330-030 * 3.3 4.0 / 5.0 0.3 B00 / B09 / B20 / H10
GBA43R350-010 GBA43L350-010 3.5 5.0 0.1 B00 / B09 / B20 / H10
GBA43R350-030 GBA43L350-030 3.5 5.0 0.3 B00 / B09 / B20 / H10
GBA43R400-010 * GBA43L400-010 * 4.0 4.0 / 5.0 0.1 B00 / B09 / B20 / H10
GBA43R400-040 GBA43L400-040 4.0 5.0 0.4 B00 / B09 / B20 / H10
GBA43R430-040 GBA43L430-040 4.3 5.0 0.4 B00 / B09 / B20 / H10
GBA43R450-040 GBA43L450-040 4.3 5.0 0.4 B00 / B09 / B20 / H10
GBA43R480-040 GBA43L480-040 4.3 5.0 0.4 B00 / B09   B20 / H10
        Note: " * "  means insert is Optional in Size " B ".
