Tungsten Carbide Inserts - PCBN inserts
Download Catalogue
P pdf
Picture pdf
How It Works
P youtube
Picture youtube



  Introduction of PCBN material

Polycrystalline Cubic Boron Nitride (PCBN) is sinteredby by CBN grains as key ingredient binding with metallic and TiN in high pressure and high temperature condition. Compared with carbide tool material, it has higher strength, higher red hardness, better heat resistance and wear resistance.

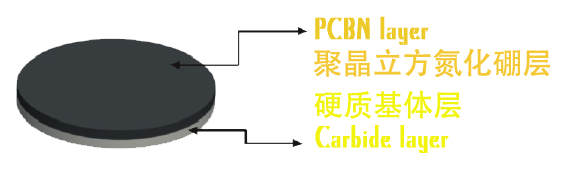

Ultrahigh pressure sintered PCBN body



Due to these features, PCBN inserts are not only used for machining casting iron but also for hard cutting materials such as hardened steel, roller, high speed steel and heat resistance alloys. So we can get ideal machining precision and machining efficiency.



≡ Instroduction of One-off PCBN inserts

The cutting tips cost few raw materials and suit for semi-finish and finish machining that the workpiece has less machining allowance on one side.



≡ The advantages & features of one-off cutting inserts

•  Economy
Multi cutting tips brazed on one insert. Compared with the regrindable inserts, its price is more economical and easier to accept.

•  Convenience
One-off multi-tip inserts are used for surrounding grinding which can be rejected after reaching to rejection standard. In addition, the inserts tips are marked so that they can be easily controlled in use.

•  Reliability
It adopts high quality material and blunting edges according to the cutting conditions. Wear resistance and tip breakage resistance are taken into full consideration.



PCBN inserts provided by SCT are applicate for diferent workpiece materials as followings:


PCBN Insert Material & Workpiece Material
  PCBN Material code   Workpiece Material   Souring
  PCBN1   Aluminum   Import Material
  PCBN2   Silicon-Aluminum   Import Material
  PCBN3   Aluminum   China
  PCBN4   Silicon-Aluminum   China

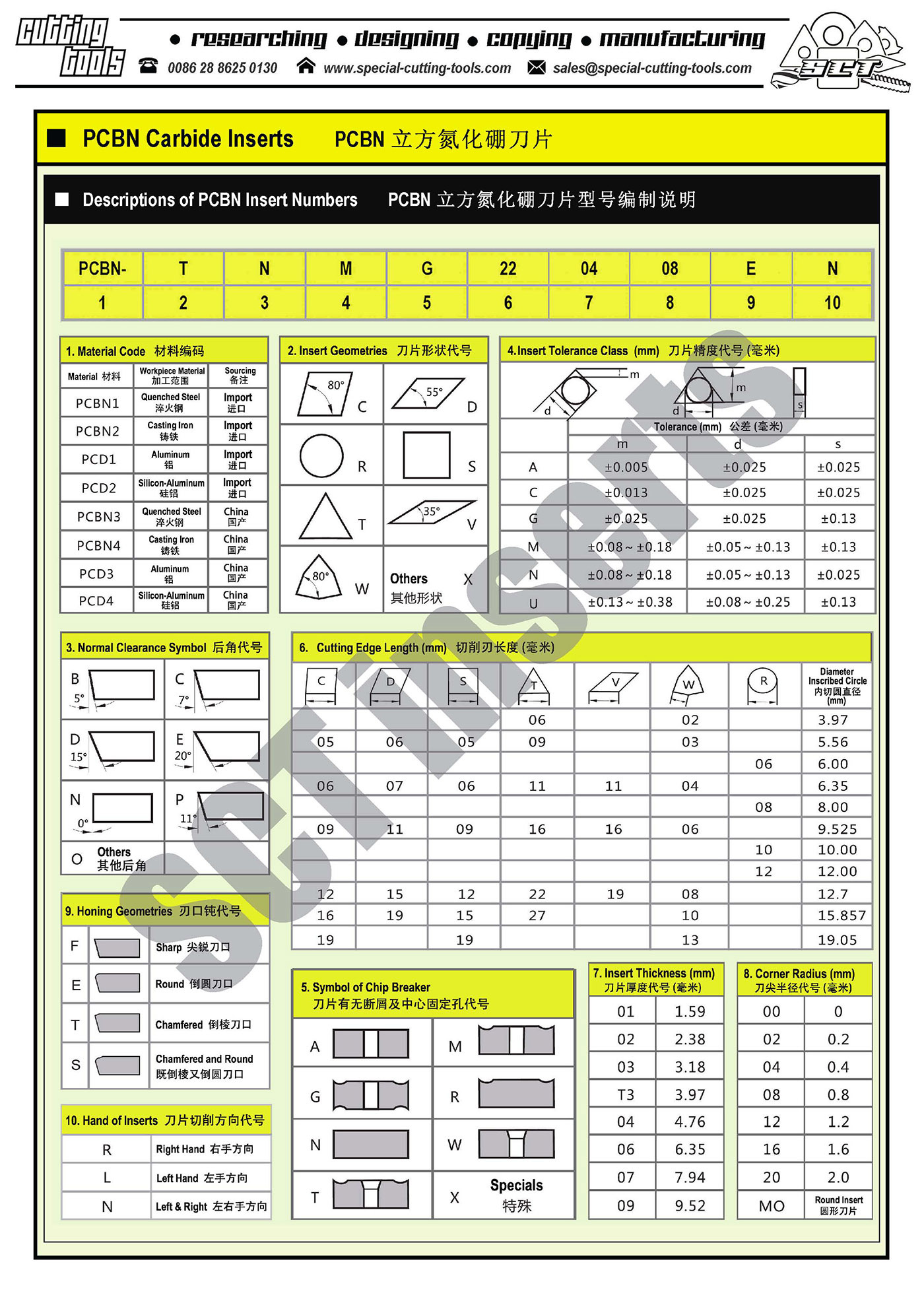

  How to Order:

  Please indicate 'PCBN1' 'PCBN2' 'PCBN3' 'PCBN4' to replace 'PCBN' when ordering our PCBN inserts.

     Example 1 :   PCBN1 carbide insert, Triangle Geometry  PCBN1-TNMA110302
       Import raw material PCBN1-TNMA110302 inserts for machining of ALUMINUM workpieces.

  Example 2 :   PCBN2 carbide insert, Triangle Geometry  PCBN2-TNMA110302
       Import raw material PCBN2-TNMA110302 inserts for machining of SILLICON-ALUMINUM workpieces.

  Example 3 :   PCBN3 carbide insert, Triangle Geometry  PCBN3-TNMA110302
       China-made raw material PCBN3-TNMA110302 inserts for machining of ALUMINUM workpieces.

  Example 4 :   PCBN4 carbide insert, Triangle Geometry  PCBN4-TNMA110302
       Import raw material PCBN4-TNMA110302 inserts for machining of SILLICON-ALUMINUM workpieces.

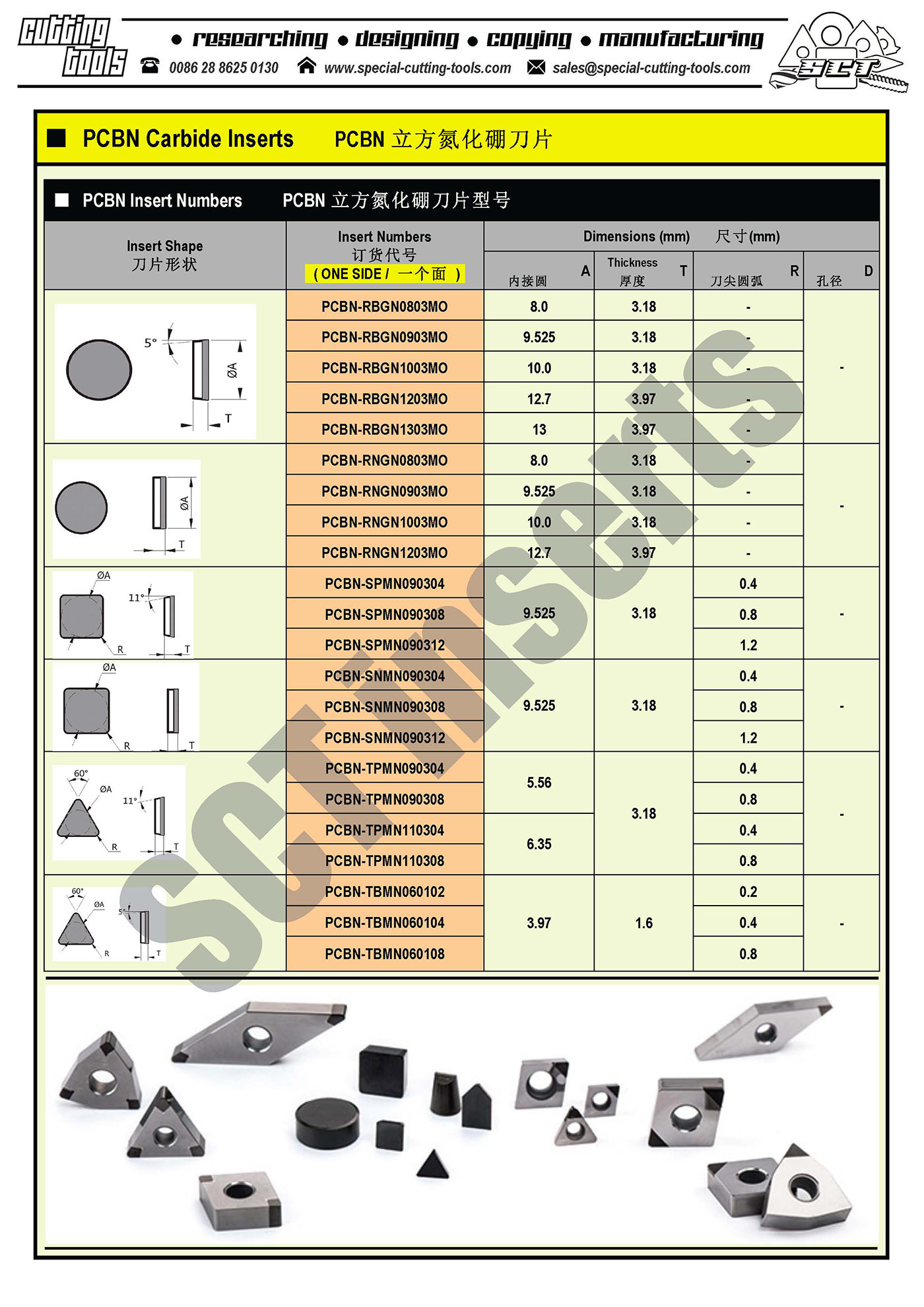

PCBN-RBGN0803MO,PCBN-RBGN0903MO,PCBN-RBGN1003MO,PCBN-RBGN1203MO,PCBN-RBGN1303MO,PCBN-RNGN0803MO,PCBN-RNGN0903MO,PCBN-RNGN1003MO,PCBN-RNGN1203MO,PCBN-SPMN090304,PCBN-SPMN090308,PCBN-SPMN090312,PCBN-SNMN090304,PCBN-SNMN090308,PCBN-SNMN090312,PCBN-TPMN090304,PCBN-TPMN090308,PCBN-TPMN110304,PCBN-TPMN110308,PCBN-TBMN060102,PCBN-TBMN060104,PCBN-TBMN060108,PCBN-SCGW070202,PCBN-SCGW070204,PCBN-SCGW090304,PCBN-SCGW090308,PCBN-SCGW090312,PCBN-SCGW09T304,PCBN-SCGW09T308,PCBN-SCGW09T312,PCBN-SCGW120402,PCBN-SCGW120408,PCBN-SCGW120412,PCBN-TCGW080202,PCBN-TCGW080204,PCBN-TCGW080208,PCBN-TCGW090202,PCBN-TCGW090204,PCBN-TCGW090208,PCBN-TCGW110202,PCBN-TCGW110204,PCBN-TCGW110208,PCBN-TCGW110304,PCBN-TCGW110308,PCBN-TCGW160308,PCBN-TCGW16T308,PCBN-TCGW160408,PCBN-CCGW060202,PCBN-CCGW060204,PCBN-CCGW090304,PCBN-CCGW090308,PCBN-CCGW120404,PCBN-CCGW120408,PCBN-DCGW070202,PCBN-DCGW070204,PCBN-DCGW070208,PCBN-DCGW110302,PCBN-DCGW110304,PCBN-DCGW110308,PCBN-DCGW150402,PCBN-DCGW150404,PCBN-DCGW150408,PCBN-VCGW110302,PCBN-VCGW110304,PCBN-VCGW110308,PCBN-VCGW160404,PCBN-VCGW160408,PCBN-TNMA110302,PCBN-TNMA110304,PCBN-TNMA110308,PCBN-TNMA160404,PCBN-TNMA160408,PCBN-TNMA160412,PCBN-TNMA220408,PCBN-TNMA220412,PCBN-SNMA120404,PCBN-SNMA120408,PCBN-SNMA120412,PCBN-SNMA150604,PCBN-SNMA150608,PCBN-SNMA150612,PCBN-CNMA120404,PCBN-CNMA120408,PCBN-CNMA120412,PCBN-DNMA150404,PCBN-DNMA150408,PCBN-DNMA150412,PCBN-VNMA160404,PCBN-VNMA160408,PCBN-VNMA220408,PCBN-WNMA080404,PCBN-WNMA080408,PCBN-WNMA080412,PCBN-SNGN090304,PCBN-SNGN090308,PCBN-SNGN090312,PCBN-SNGN09T304,PCBN-SNGN09T308,PCBN-SNGN09T312,PCBN-SNGN120408,PCBN-SNGN120412,PCBN-SPGN090304,PCBN-SPGN090308,PCBN-SPGN090312,PCBN-SPGN120308,PCBN-SPGN120312,PCBN-CNGN090304,PCBN-CNGN090308,PCBN-CNGN090312,PCBN-CNGN120404,PCBN-CNGN120408,PCBN-CNGN120412,PCBN-TPGN090204,PCBN-TPGN110304,PCBN-TPGN110308,PCBN-TPGN160404,PCBN-TPGN160408,PCBN-TPGN220408
